Installing E/OS on FP5 with Web Installer Fails "Error on step: connect-bootloader

Hi, I wondered if anyone could point me in the right direction. I am trying to install on new FP5, Android 14, security update 5 January 2025. I’m using an Ubuntu 24.10 PC. Keep getting the following on step 9. The phone reboots to bootloader, I click connect and then get this

Error on step: connect-bootload
Cannot execute command connect bootloader
The device is not connected Failed to connect: Cannot connect Bootloader
Proposal: Check connection and that no other program is using the phone and retry.

I’ve made sure phone is not mounted, tried different cables using different computer ports. Always the same error.

Thanks

FP5 is not supported by the “easy-installer”,
Try using the “/e/ web-installer” or the “open android installer”
Or better Install /e/OS on a Fairphone FP5 - “FP5”

1 Like

Thanks for the reply. Apologies I mistyped it wsa the web installer I was using I believe. I will have a look at the other options.

All seemd to be going well, until I tried to re-lock it, got an error something like “Your device is corrupt. It can’t be trusted and will not boot.” and then it rebooted into bootloader but I can get no further. Can anyone help?

Thankfully “fastboot flashing unlock” and then reinstalling seem to of got my phone back. I was only sweating slightly! The question is should I try and lock it again? Bit scared now. All seems working, boots into E/OS, just get a warning about the phone being unlocked on power up.

It will probably do the same thing if you re-lock the bootloader. You might be running into the “anti-rollback” problem. It’s what happens when the security update level of the OEM Android instance is newer than the level of /e/os you’re installing. Personally I’d just leave it unlocked. It’s really not a big deal for the average user though you’ll see statements saying it’s strongly recommended to lock it.

1 Like

Not without checking the Android SPL of your newly installed /e/OS.

I very much doubt it can be as new as you report your last Fairphone build

1 Like

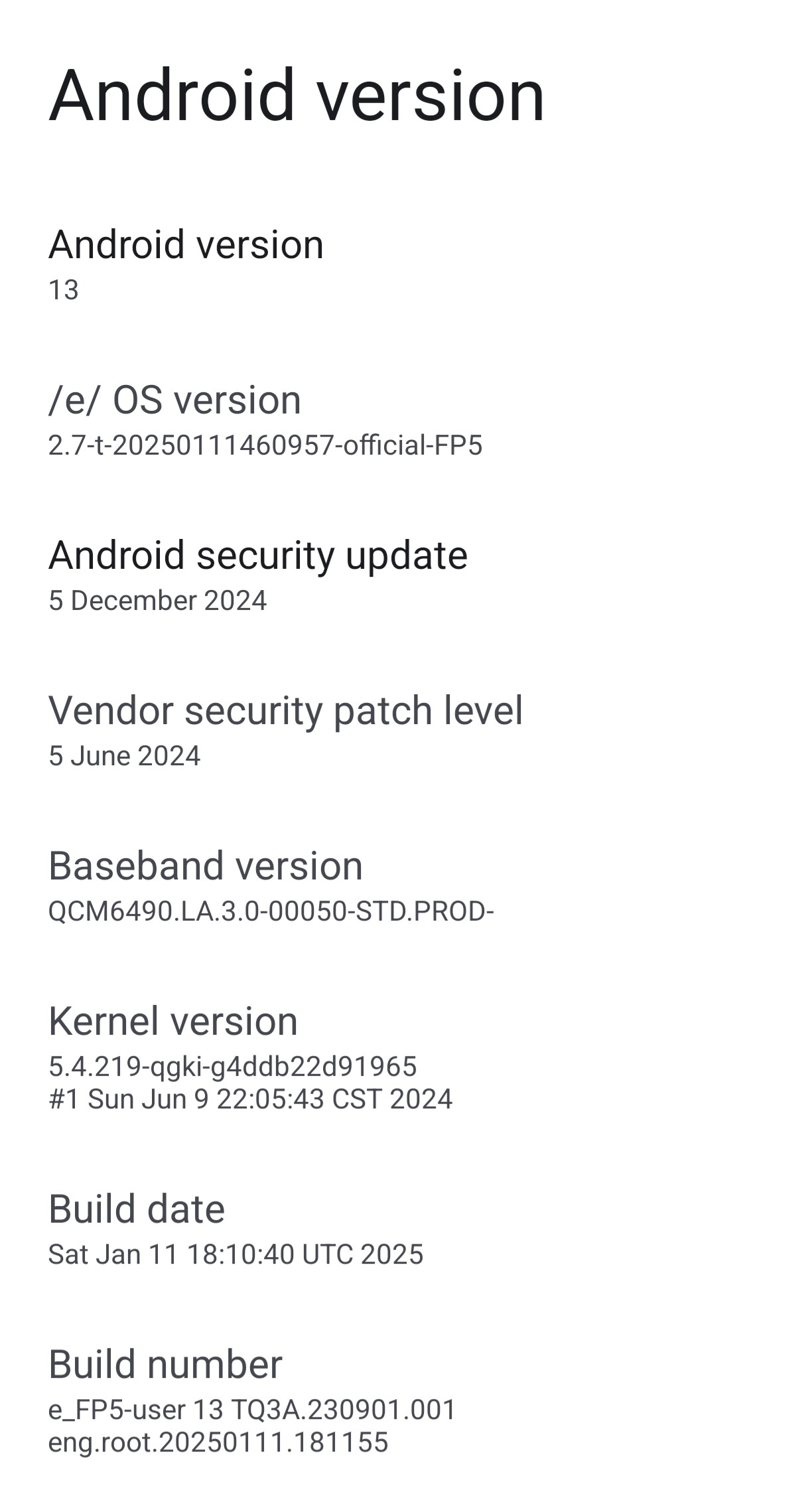

When I checked the date on the latest e/os/ build it said 5 January 2025, I thought this meant it would be ok. In the caution section it says the android version is NOT relevant. Am I getting something confused? This is what my phone now says;

So what is installed is not the upcoming latest. Your phone will offer an update, probably in the later part of the coming week.

The phone is usable in the meantime, but if / when you lock it, it will Factory reset and all data will be lost.

At this point we see from Releases · e / os / 🚀 Releases · GitLab,

:warning: Security fixes
This /e/OS 2.8 version includes the Android security patches available as of January 2025.

However my community e-2.8-a14-xxx build has Android SPL 1 January 2025. If your update has this same date, the bootloader would still not be lockable. Edit in light of your image below.

  • Official builds are generally released towards the end of the release period.
1 Like

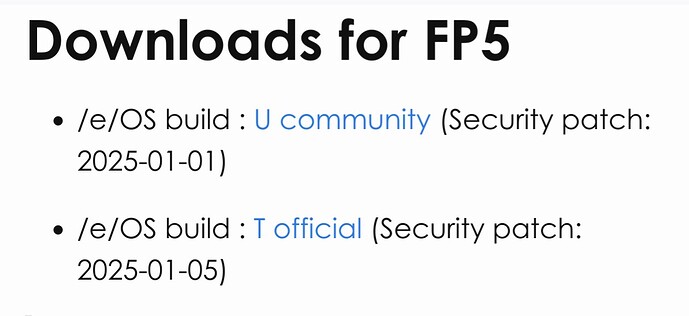

Thanks, this is what confused me;

I’m still not sure what I have misunderstood, but I have a working phone with no google, so very grateful of peoples efforts to get me this far.

I guess that your image anticipates and shows information updated before the e-2.8-t-xxx build is actually published.
DL-FP5

1 Like

Thanks, the image shows the link I used to download. I had been waiting for the latest release after buying the phone.Think I’ve got something very muddled.

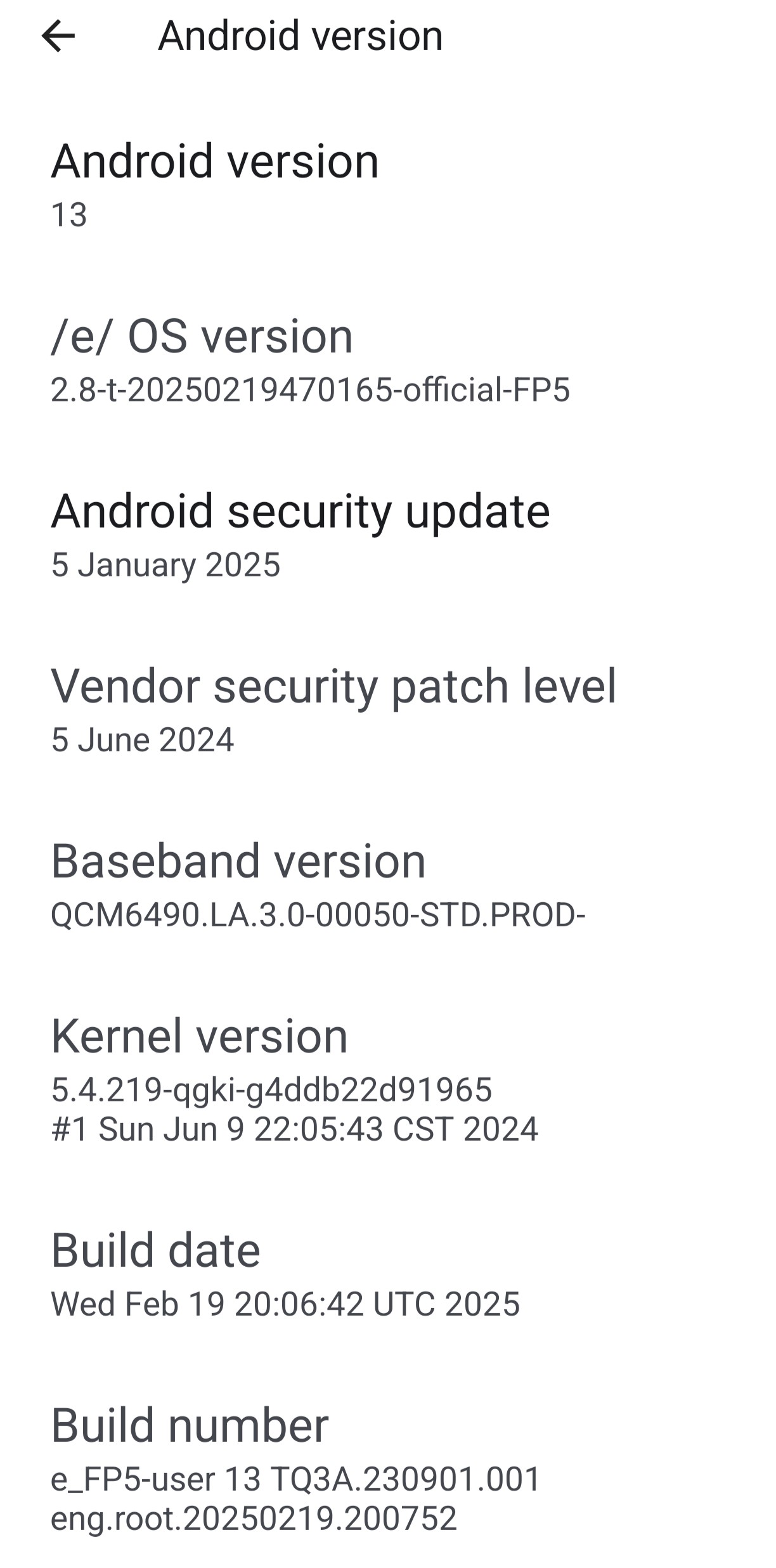

Is my confusion due to “security patch” being different to “security update,” because otherwise as the dates match I have a different problem? Phone is now offering update to 2.8, does this mean that I can reasonably safely lock my phone once this update is installed? (being fully aware it will reset my phone)

No, the problem you experienced is just that you saw wrong information (probably only incorrect over the weekend).

When you have the update then you want to check for sure that you see 5th Jan before you lock.

1 Like

Thank you, that’s absolutly bonkers mind, not really filling me with confidence. Not sure if I want to risk locking it again now knowing that the dates can’t be trusted.

Hi Barry,

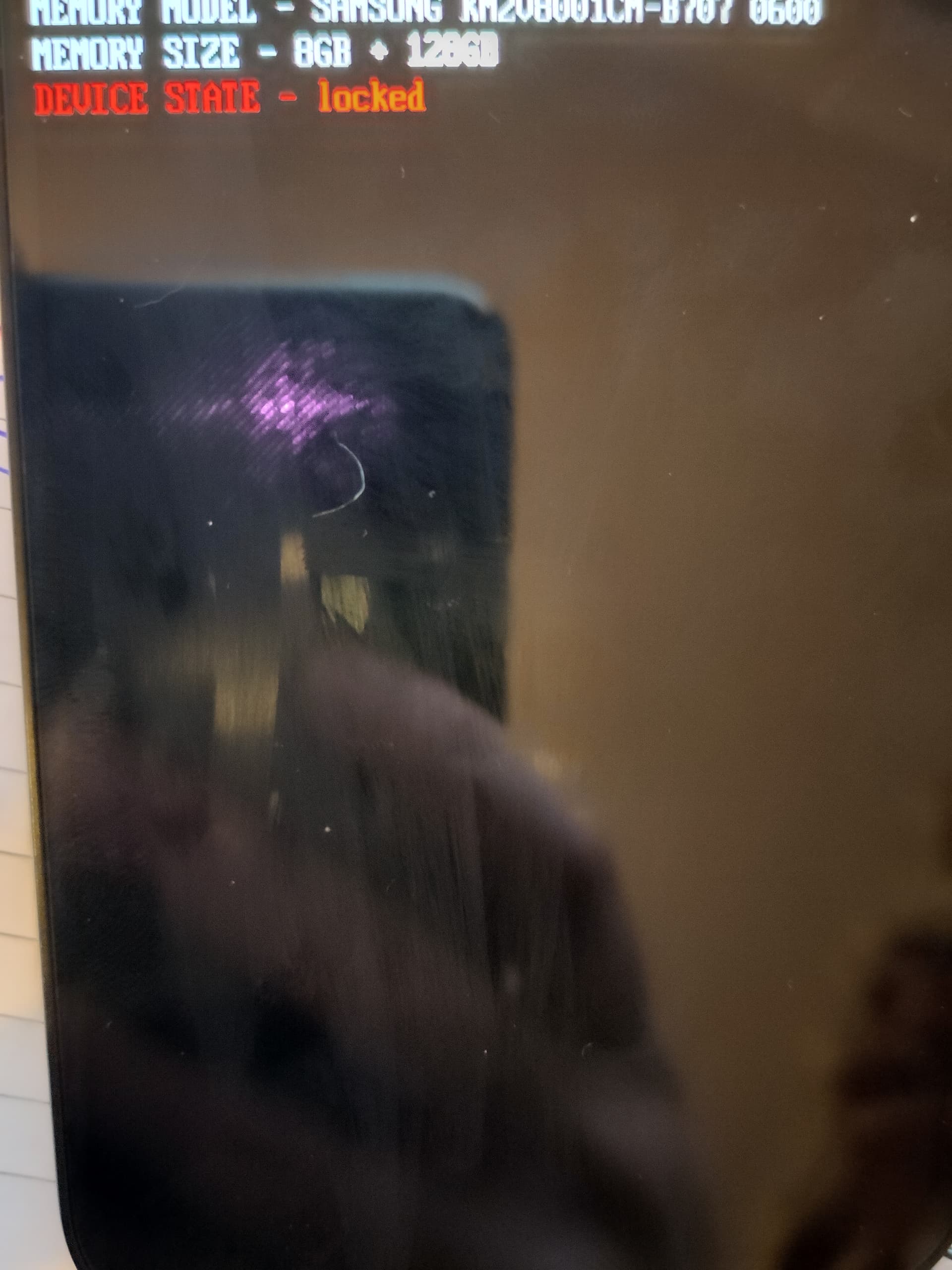

How did you resolved the issue at step 9? I have the same problem :smiling_face_with_tear:. Device state is locked. Might be the issue?

Thanks,
Xavier

I followed the instructions here in the end;

https://doc.e.foundation/devices/FP5/install

I suspect there are some steps missing in the web installer instructions, as I don’t understand how it can work unless fastboot and adb are installed first.

1 Like

Thanks, will try this option as well.

1 Like

Quote Install /e/OS on a Fairphone FP5 - “FP5”

Confirm that extracted directory contains following content:
bin-linux-x86 directory - which contains linux tools including fastboot and adb

1 Like

Yes, this is what I followed in the end thanks to @piero, and I am now using e/os succesfully.

The original post and @0_xavier_0 was asking about a problem encountered at step 9 of the web installer however. Where, I don’t recall being instructed to install adb or fastboot or did I miss something?
