[UNOFFICIAL BUILD] Samsung Galaxy S 5 LTE (klte) and other variants for /e/OS-T using LOS-UL

ronnz98 · December 20, 2024, 6:51pm

Samsung Galaxy S 5 LTE (klte) and other variants for /e/OS-T 2.6

Update: did paste working ROM version also here

Since I increased my building skills slightly over the last months I gave this a last try

e-2.6.3-t-20241222-UNOFFICIAL-klte.zip
https://sourceforge.net/projects/eosbuildsronnz98/files/SamsungSmartphones/e-2.6.3-t-20241222-UNOFFICIAL-klte.zip/download

Samsung Galaxy S5 Korea variants (SM-G900K, SM-G900L, SM-G900S) (kltekor)
https://sourceforge.net/projects/eosbuildsronnz98/files/SamsungSmartphones/e-2.6.3-t-20241223-UNOFFICIAL-kltekor.zip/download

Samsung Galaxy S5 Japan variants (SC-04F, SCL23) (kltekdi)
https://sourceforge.net/projects/eosbuildsronnz98/files/SamsungSmartphones/e-2.6.3-t-20241223-UNOFFICIAL-kltekdi.zip/download

Samsung Galaxy S5 (SM-G900I/P) (kltedv)
https://sourceforge.net/projects/eosbuildsronnz98/files/SamsungSmartphones/e-2.6.3-t-20241223-UNOFFICIAL-kltedv.zip/download

Samsung Galaxy S5 China Dual-SIM variants (SM-G9006W, SM-G9008W, SM-G9009W) (kltechnduo)
https://sourceforge.net/projects/eosbuildsronnz98/files/SamsungSmartphones/e-2.6.3-t-20241223-UNOFFICIAL-kltechnduo.zip/download

Samsung Galaxy S5 China variants(SM-G9006V, SM-G9008V) (kltechn)
https://sourceforge.net/projects/eosbuildsronnz98/files/SamsungSmartphones/e-2.6.3-t-20241223-UNOFFICIAL-kltechn.zip/download

Samsung Galaxy S5 Unified variants (SM-G900AZ, SM-S902L) (klteaio)
https://sourceforge.net/projects/eosbuildsronnz98/files/SamsungSmartphones/e-2.6.3-t-20241223-UNOFFICIAL-klteaio.zip/download

Samsung Galaxy S5 Active variant (SM-G870F) (klteactivexx)
https://sourceforge.net/projects/eosbuildsronnz98/files/SamsungSmartphones/e-2.6.3-t-20241223-UNOFFICIAL-klteactivexx.zip/download

Samsung Galaxy S5 Dual-SIM variants (SM-G900FD, SM-G900MD) (klteduos)
https://sourceforge.net/projects/eosbuildsronnz98/files/SamsungSmartphones/e-2.6.3-t-20241223-UNOFFICIAL-klteduos.zip/download

Please see sources and install instructions including recovery here:
https://xdaforums.com/t/unofficial-lineageos-20-0-android-13.4498857/

Use it at your own risk!
Please support the developer(s)!

Xxpsilon · December 20, 2024, 8:31pm

e-2.6.3-t-20241220-UNOFFICIAL-klte
recovery-e-2.6.3-t-20241220-klte

Several installation attempts, always the same result: Syst/e/m start to animated e-logo. The dot under the e bounces for one minute, then the system starts to the Samsung Android logo and the animated e-logo runs for one minute = bootloop!

Xxpsilon · December 21, 2024, 9:11am

Works: lineage-21.0-20240423-UNOFFICIAL-klte by @khalvat + twrp-3.7.0_9-0-klte

Galaxy S5 (klte) + /e/OS-U

ronnz98 · December 21, 2024, 9:27am

/e/OS-U will be even more challenging as LOS21 for klte uses more LOS-UL parts. I focus now on LOS19 klte and reached out to the developer, I did only have one issue left which might be the cause

Xxpsilon · December 21, 2024, 9:39am

LOS19 klte ~ /e/OS-S klte
A working /e/OS-S klte would also be very nice.

ronnz98 · December 21, 2024, 1:03pm

Next try, this time I could resolve at least all remaining build issues:

https://sourceforge.net/projects/eosbuildsronnz98/files/SamsungSmartphones/e-2.6.3-t-20241221-UNOFFICIAL-klte.zip/download

Xxpsilon · December 21, 2024, 2:20pm

Galaxy S5 (klte) with TWRP 3.7.0_9-0-klte

Install of e-2.6.3-t-20241221-UNOFFICIAL-klte recovery.img
TWRP message: Successful
e-recovery starts successfully this time without error messages

Install of e-2.6.3-t-20241221-UNOFFICIAL-klte.zip via e-Recovery T-2.6.3
e-Recovery message: Install completed with status 0. /e/ recovery works!

Install of e-2.6.3-t-20241221 starts, but remains in the animated e-logo. After a good minute = bootloop … >>> Factory reset = bootloop again.

ronnz98 · December 22, 2024, 2:25pm

Another try for T:

https://sourceforge.net/projects/eosbuildsronnz98/files/SamsungSmartphones/e-2.6.3-t-20241222-UNOFFICIAL-klte.zip/download

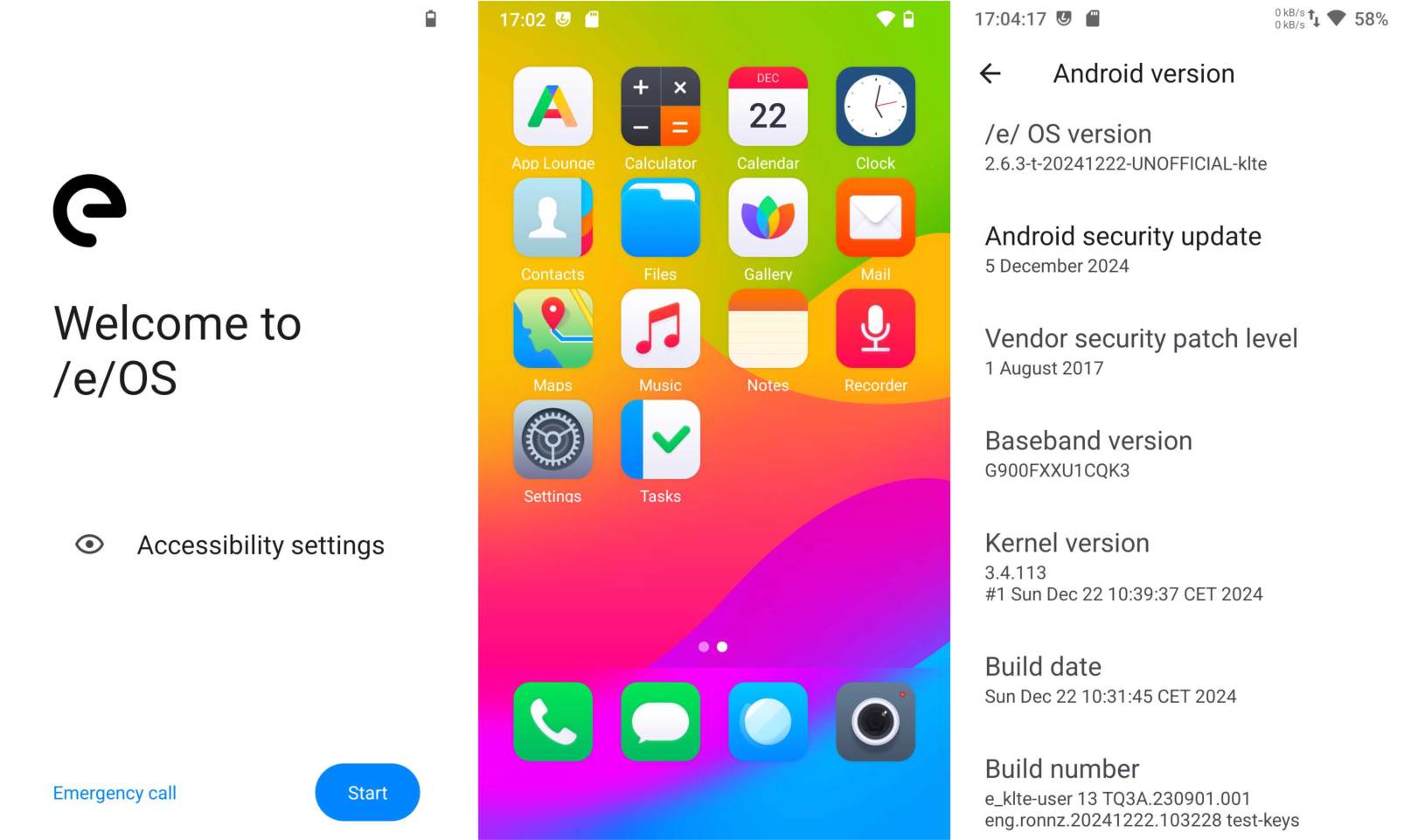

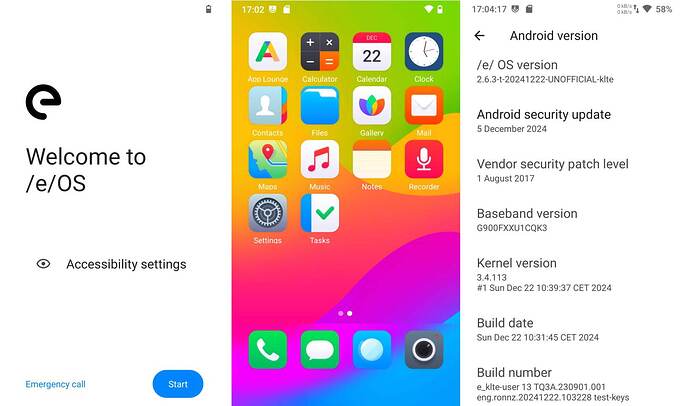

Xxpsilon · December 22, 2024, 4:31pm

e-2.6.3-t-20241222-UNOFFICIAL-klte-A
recovery-e-2.6.3-t-20241222-UNOFFICIAL-klte-A

That was a lot of hard work - but it’s done! Bravo

By the way: The download speed of sourceforge .net is once again very slow today. It can take up to 40 minutes before a .zip is available - if the download is not interrupted.

ronnz98 · December 22, 2024, 7:04pm

Really cool, I did nearly gave up, but now we have the proof. /e/OS can be build using LOS-UL sources
If anyone is interested I can write a how-to what I did

Xxpsilon · December 25, 2024, 8:43am

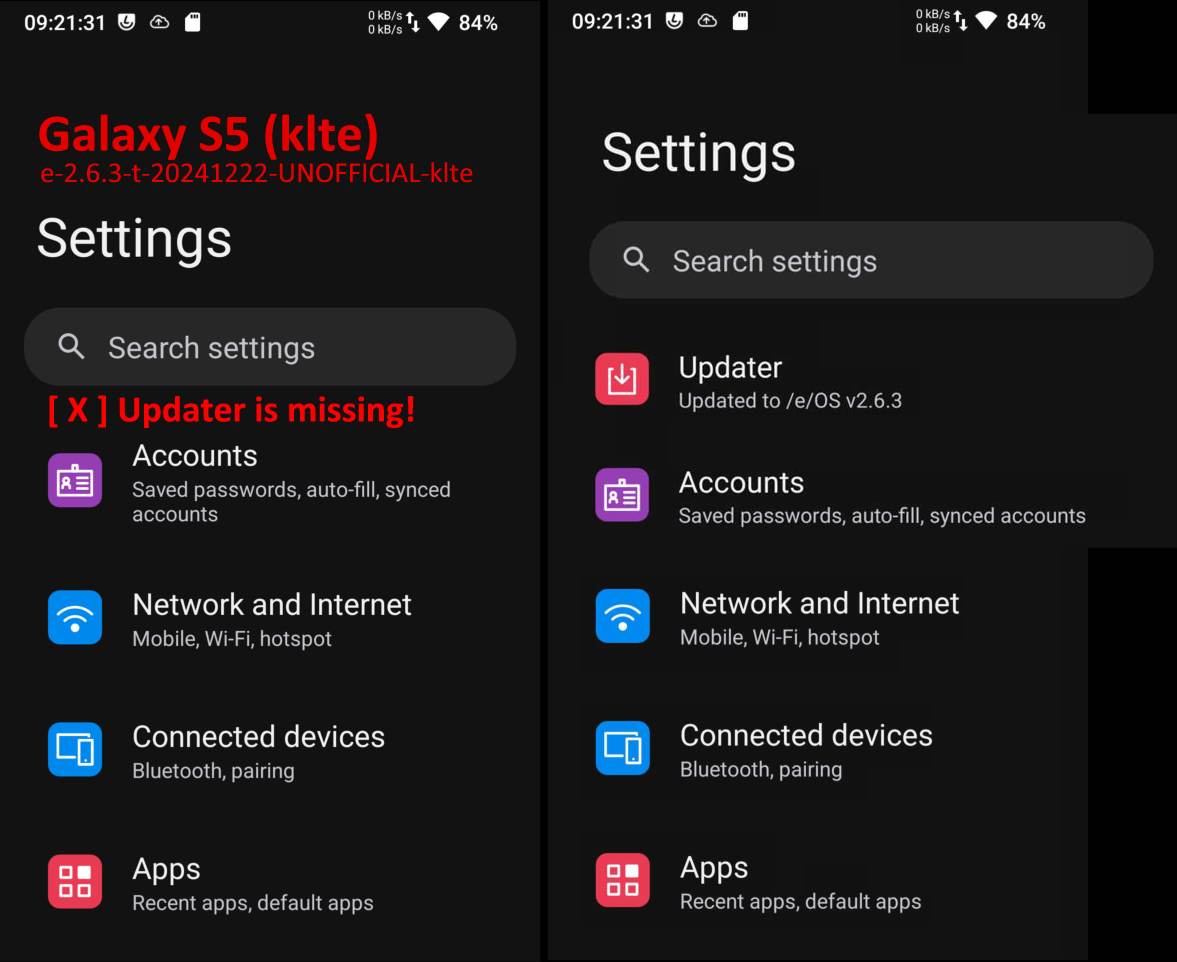

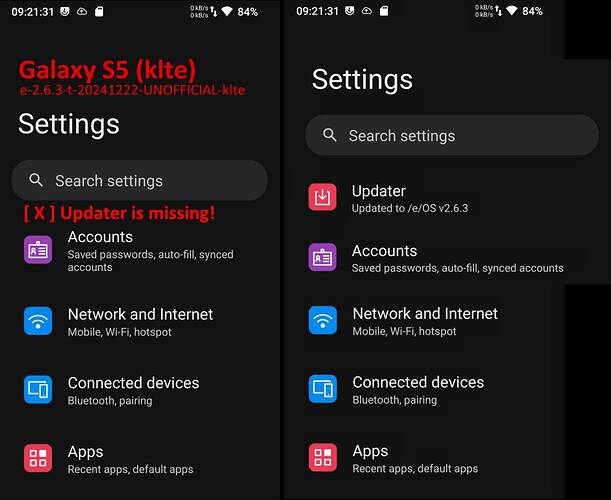

Updater

Updater is missing!

This also means that the convenient “Local update” function cannot be selected and used.

ronnz98 · December 25, 2024, 8:48am

Yes I know. I needed to leave it out due to errors in building. There was another error I cannot asses what potential issues this might bring… I will depict in my LOS-UL how-to when I write it.

Xxpsilon · December 25, 2024, 8:56am

Well, the Updater failure is not a break in the leg, because the e-Recovery function can be used as an alternative:

Apply update >

Choose from interanl storage
Choose from sdcard1

Both options also allow a manual update without data loss.

ronnz98 · December 25, 2024, 9:03am

Exactly! Also update via adb sideload is possible. Potentially the fix for the updater issue is not a big thing…we’ll see

Xxpsilon · December 25, 2024, 9:07am

Exactly! An update via adb sideload is also possible. However, not every user is able to execute this function.

ronnz98 · December 27, 2024, 12:49pm

Does Bluetooth work?

Xxpsilon · December 27, 2024, 1:45pm

Yes! Tested with BT Sound Box.

ronnz98 · December 27, 2024, 2:03pm

Did you test S vor T Version?

Xxpsilon · December 27, 2024, 2:35pm

T-version with e-T-Recovery is my favorite (clean installation)

S-version I may test again on my 2nd klte when the device is delivered to me.

ronnz98 · December 27, 2024, 2:37pm

So Bluetooth does work for T?
